LASER FIBER CUTTING

LASER FIBER CUTTING

LASER FIBER CUTTING

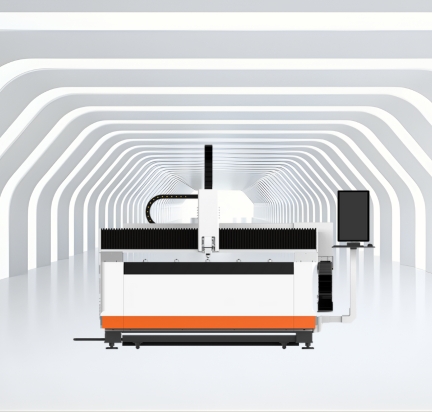

The LASER Fiber Cutting Machine is a high-performance industrial cutting solution engineered for superior speed, precision, and efficiency. Built to cut metals with incredible accuracy, it delivers clean, burr-free edges on materials such as mild steel, stainless steel, aluminum, brass, copper, and more. Known for its robust construction, low maintenance, and energy efficiency, this machine is ideal for industries requiring fast and accurate sheet metal cutting.

Performance & Applications

Equipped with advanced fiber laser technology, this machine ensures high-speed cutting with excellent beam quality and minimal thermal distortion. It is suitable for sheet metal fabrication, automotive parts, electrical enclosures, signage, construction components, kitchen equipment, and industrial machinery. The non-contact cutting process results in smooth edges, reduced material wastage, and consistent accuracy even in complex shapes.

Technology & Features

Featuring a stable laser source with a long operational lifespan, the system offers outstanding reliability and low operating costs. Its intelligent CNC control software supports multiple formats (DXF, AI, PLT, BMP), allowing seamless workflow integration. Automatic focusing, real-time monitoring, and high-speed servo motors ensure precision cutting. Optional attachments like pipe-cutting modules enhance versatility for industrial applications.

Product Specifications

Main Technical Specifications
Laser Power Options 1kW / 2kW / 3kW / 6kW / 12kW / 20kW
Working Area 1300×900 mm / 1530×3050 mm / 2040×4080 mm
Laser Source Brand Raycus / Max / IPG
Cutting Head Raytools / WSX Auto-Focus Head
Cutting Thickness Up to 20 mm MS, 12 mm SS, 10 mm Aluminum (based on power)
Drive System Dual Servo Motor System
Transmission Precision Ball Screw / Rack & Pinion
Max Cutting Speed 35–60 m/min
Positioning Accuracy ±0.03 mm
Cooling System Industrial Water Chiller
Supported Materials MS, SS, Aluminum, Brass, Copper, GI Sheet
Software CypCut / NC Studio / Bodor Pro
Interface USB / LAN / Touch Panel
Operating Voltage AC 380V / 50–60Hz
Operating Temperature 15–40°C
